P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 圧着範囲 | 14-87mm | 管の大きさ | 1/4-2.5inch |
|---|---|---|---|
| ダイセット | 13 | 色 | 青 |
| マックス オープニング | 31mm | 圧着力 | 650T |
| システム圧力 | 31.5MPA | 力 | 3.75kw |
| サイズ | 650*550*1360mm | 重さ | 310kg |
| ハイライト | 650T Crimping Force Hydraulic Hose Crimping Machine,13 Die Sets Hose Crimper,31.5Mpa System Pressure Hydraulic Crimper |
||
製品の説明

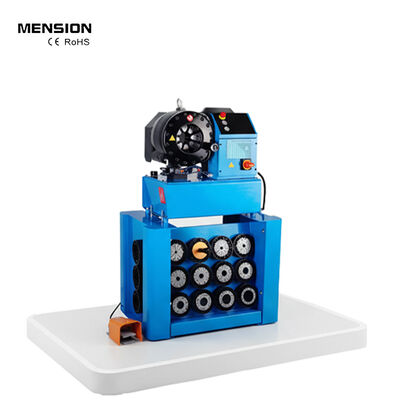

P32 Hydraulic Hose Crimping Machine with 650T Crimping Force
The MS-P32 hydraulic hose crimping machine is a high-performance industrial solution designed for demanding hydraulic applications. With substantial 650T crimping force and compatibility with hose sizes from 6mm to 64mm, this machine delivers reliable performance for high-pressure hydraulic systems.
Key Advantages
- Rexroth valve system ensures powerful crimping force and extended service life
- Quick-change tooling for die sets minimizes setup time and boosts productivity
- Foot pedal operation provides hands-free control for improved work efficiency
- Popular model with strong market demand in 2024
Technical Specifications
| Model | MS-E130 P32 Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32 Crimping Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
Important Notes
- "*" indicates non-standard die sets
- Customized die sets are available upon request
- Special voltage options available: 110V, 208V, 240V, 415V
Applications
- High-pressure stainless steel braided hydraulic rubber hose
- Industrial hose systems
- Cables and wires
- Steel and iron tubes
- Automotive brake lines
- Air suspension or spring systems
