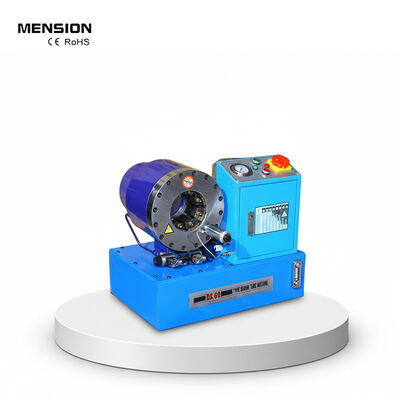

Hydraulic Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure and 14-87mm Crimping Range for Hose Assembly Making Hose Crimping Machine DX69 DX68
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 圧着範囲 | 14 - 87mm | 管の大きさ | 2inch 4SH |
|---|---|---|---|
| ダイセット | 10 | 色 | 青 |
| マックス オープニング | 25mm | 圧着力 | 640T |
| 製品名 | MS - DX69ひだが付く機械 | アプリケーション | ワークショップ |
| システム圧力 | 31.5MPA | 力 | 3KW/4KW |
| サイズ | 630*450*560mm | 重さ | 190kg |
| ハイライト | 640T Crimping Force Hydraulic Hose Crimping Machine,31.5Mpa System Pressure Hydraulic Pipe Pressing Machine,14-87mm Crimping Range Hose Assembly Making Machine |
||
製品の説明
Hydraulic Pipe Pressing Machine DX69 Rubber Hose Assembly Making Machine
64mm Hydraulic Pipe Pressing Machine DX69 For Rubber Hose Assembly Making
HYDRAULIC HOSE CRIMPING PRESS MACHINE MS - DX69
DESCRIPTION
The MS-DX69 hydraulic hose crimping machine is renowned for its high speed and precision performance. Designed for crimping hydraulic hose and fittings ranging from 1/4" to 2" with four to six steel wire braided construction. Available in both single phase and three phase configurations to meet specific operational requirements.
FEATURES
- Precise crimping with substantial force capability
- High stability achieved through quality components
- Operator-friendly design for enhanced usability
- Easy operation with comprehensive safety features
- Hydraulic back positioning system
TECHNICAL DATA
| Model | DX-69 Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4 Layers |
| Max. Opening | 25 (mm) |
| Die Sets | 10 |
| Die Set Type | 69 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) / 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 560 (mm) |
| Weight | 190 (KG) |
69 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 14 mm | 35 |
| 14 | 14 - 16 mm | 60 |
| 16 | 16 - 20 mm | 60 |
| 20 | 20 - 22 mm | 60 |
| 22 | 22 - 26 mm | 60 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 38 mm | 70 |
| 38 | 38 - 46 mm | 70 |
| 46 | 46 - 54 mm | 80 |
| 54 | 54 - 64 mm | 80 |
| 64 | 64 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
NOTE
1) Customized die sets are available upon request
2) Special voltage configurations including 110V, 208V, 240V, and 415V are available
3) * indicates non-standard die sets
DELIVERY STANDARD
- Hose Crimping Machine
- Foot Pedal
- 10 Die Sets
- Operation Manual
- Consumable Accessories
OPTIONS
