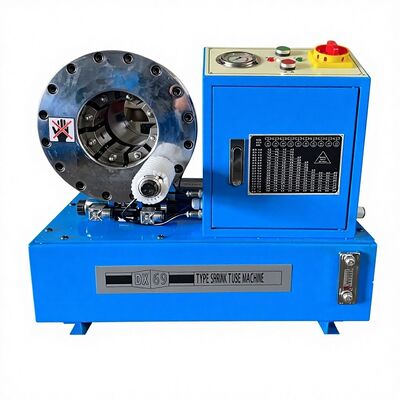

CE RoHS Certified Hydraulic Hose Crimping Machine with 640T Crimping Force 14-87mm Range and 10 Die Sets for Rubber Hose Assembly
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 圧着範囲 | 14 - 87mm | 管の大きさ | 2inch 4SH |
|---|---|---|---|
| ダイセット | 10 | 色 | 青 |
| マックス オープニング | 25mm | 圧着力 | 640T |
| 製品名 | MS - DX69ひだが付く機械 | 応用 | ワークショップ |
| システム圧力 | 31.5MPA | 力 | 3KW/4KW |
| サイズ | 630*450*560mm | 重さ | 190kg |
| ハイライト | 640T Crimping Force Hose Crimping Machine,14-87mm Crimping Range Hydraulic Hose Crimping Machine,10 Die Sets Rubber Hose Assembly Making Machine |
||
製品の説明
CE RoHS Certified Hydraulic Hose Crimping Machine With 640T Crimping Force 14-87mm Range And 10 Die Sets For Rubber Hose Assembly
Hydraulic Pipe Pressing Machine DX69 Rubber Hose Assembly Making Machine
64mm Hydraulic Pipe Pressing Machine DX69 For Rubber Hose Assembly Making
HYDRAULIC HOSE CRIMPING PRESS MACHINE MS - DX69
MS-DX69 is renowned for its high speed and precision crimping capabilities. This machine is designed for crimping hydraulic hose and fittings ranging from 1/4" to 2" with four to six steel wire braided construction. Available in single phase or three phase configurations to meet your specific requirements.
KEY FEATURES
- Precise crimping with substantial force
- High stability with quality components
- Operator-friendly design for ease of use
- Simple operation with enhanced safety features
- Hydraulic back positioning system
TECHNICAL SPECIFICATIONS
| Model | DX-69 Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4 Layers |
| Max. Opening | 25 (mm) |
| Die Sets | 10 |
| Die Set Type | 69 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) / 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 560 (mm) |
| Weight | 190 (KG) |
69 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 14 mm | 35 |
| 14 | 14 - 16 mm | 60 |
| 16 | 16 - 20 mm | 60 |
| 20 | 20 - 22 mm | 60 |
| 22 | 22 - 26 mm | 60 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 38 mm | 70 |
| 38 | 38 - 46 mm | 70 |
| 46 | 46 - 54 mm | 80 |
| 54 | 54 - 64 mm | 80 |
| 64 | 64 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
Important Notes:
1) Customized die sets are available upon request
2) Special voltage options: 110V, 208V, 240V, 415V
3) * indicates non-standard die sets
1) Customized die sets are available upon request
2) Special voltage options: 110V, 208V, 240V, 415V
3) * indicates non-standard die sets
STANDARD DELIVERY INCLUDES
- Hose Crimping Machine
- Foot Pedal
- 10 Die Sets
- Operation Manual
- Consumable Accessories
OPTIONAL ACCESSORIES
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
